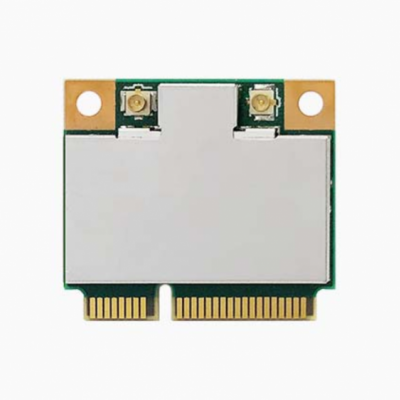

WPEQ-268AXI(BT)

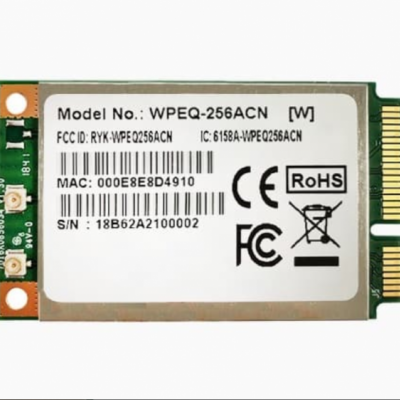

WPEQ-256ACN

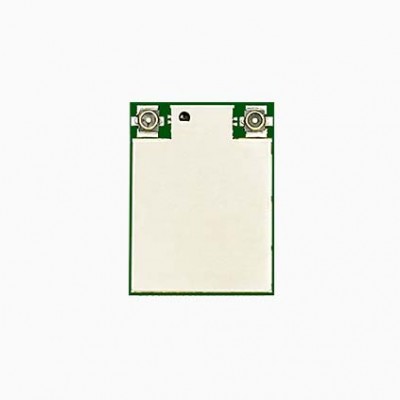

AP6275SDSR
WPEA-251ACNI(BT)
WPEA-352ACNRB
WPEQ-256ACNRBI
WPEA-352ACNRBI
產品詳情
歡迎來到上海勤諾智能通訊科技有限公司！
- 銷售熱線：15618696870
- 移動版
點擊圖片查看原圖產品價格 面議
最小起訂量：10 片 可售數量：100 片
WIFI快速漫游網卡
￥400.00/片
企業名片它支持關鍵的 Wi-Fi 6 ，包括 OFDMA 和 MU-MIMO 技術，可在擁擠的環境中提供更好的性能、高級漫游功能和 WPA3 安全協議。具有無縫漫游功能和高級安全性的 Wi-Fi 功能模塊。此外，還包括用于 Wi-Fi 的 PCIe v3.0 接口。
緊湊型設計，11ax WiFi 6 整體解決方案。該模塊專為平板電腦、OTT盒子、便攜式設備、瘦客戶端設備、游戲機等而開發。
參數特性
STANDARD |
||
| WI-FI | IEEE 802.11ax/ac/a/b/g/n WiFi Module | |
| Chipset | Broadcom | |
| Host Interface | WiFi: Support PCIe v3.0 compliant and runs at Gen2 speeds. | |
RADIO |
||
| Antenna | 2 x MHF4 connector | |
| Operating Frequency | 2.4GHz ISM Band | |
| 2.400GHz~2.4835GHz
5GHz UNII Band 5.150GHz~5.850GHz *Subject to local regulations* |
||
MODULATIONS |
||
| 802.11b | DSSS (DBPSK, DQPSK, CCK) | |
| 802.11g/n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) | |
| 802.11ax | OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM) | |
ENVIRONMENTAL |
||
| Temperature Range | -10~ 65°C (Operating) | -40 ~ 125°C (Storing) |
| Humidity (Non-Condensing) | 10 ~ 95% (Operating) | |
SIZE |
||
| Dimension (MM) | 12mm(±0.15mm) x 16mm(±0.15mm) x 1.8mm(Max.) | |
| Weight | 0.56g | |
SOFTWARE |
||
| Driver | Linux, Android | |
| Security | ||
Miscellaneous |
||
| Warranty Period | 12 Month | |
| HS Code | 8517620050 | |
 |
 |
||||
| ROHS | Reach |
